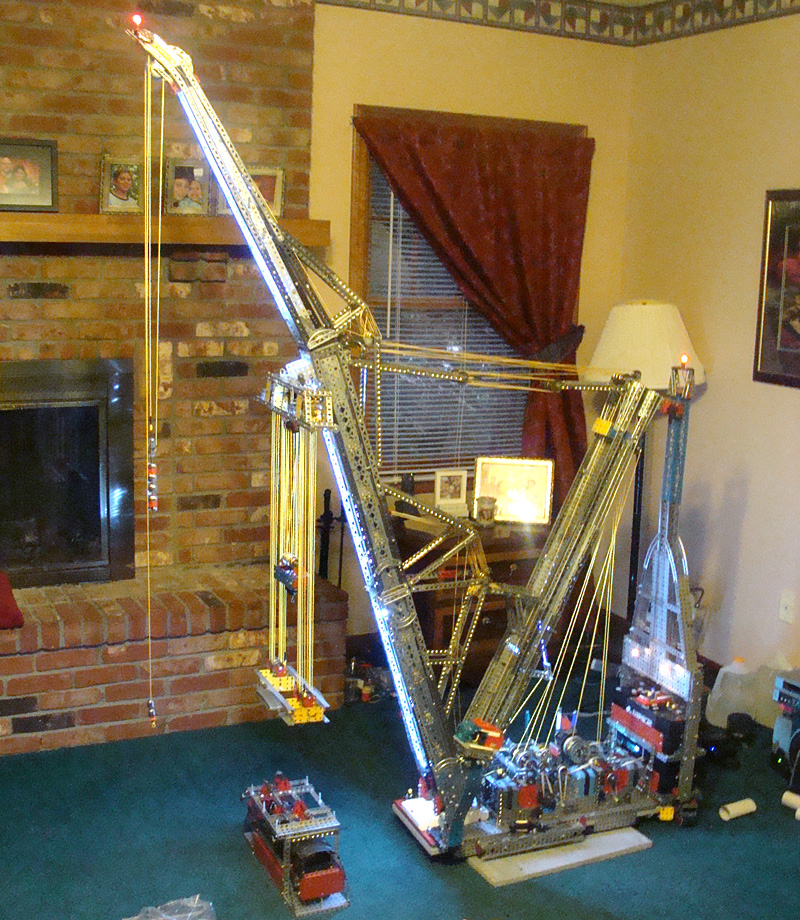

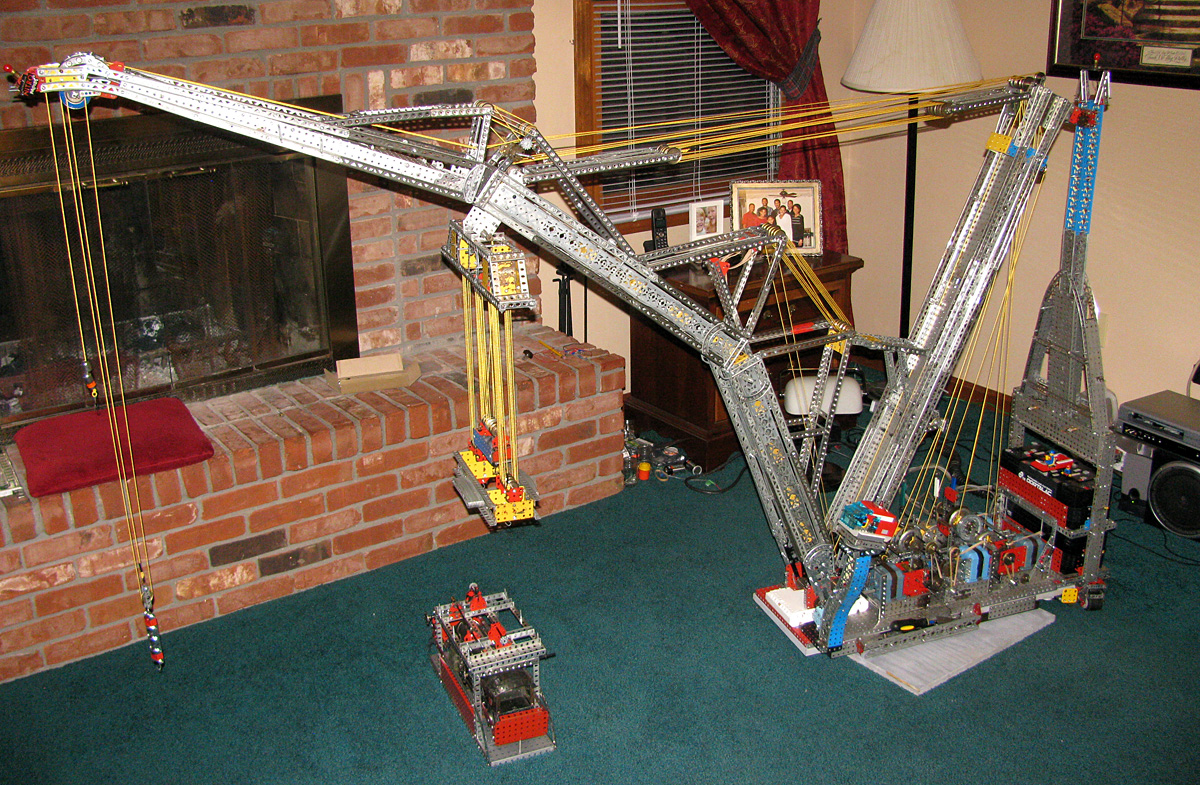

Before building this crane, I looked at several crane designs on the Internet and incorporated some of the designs in my model. I have given my crane the name “The Mammoth Crane”, representing the new generation of 200,000 ton heavy lift cranes. These are cranes which are platform twin-rig containerized. In the PTC design of these cranes the boom height is as high as 587 feet. In addition, these cranes can lift in excess of 3,500 tons.

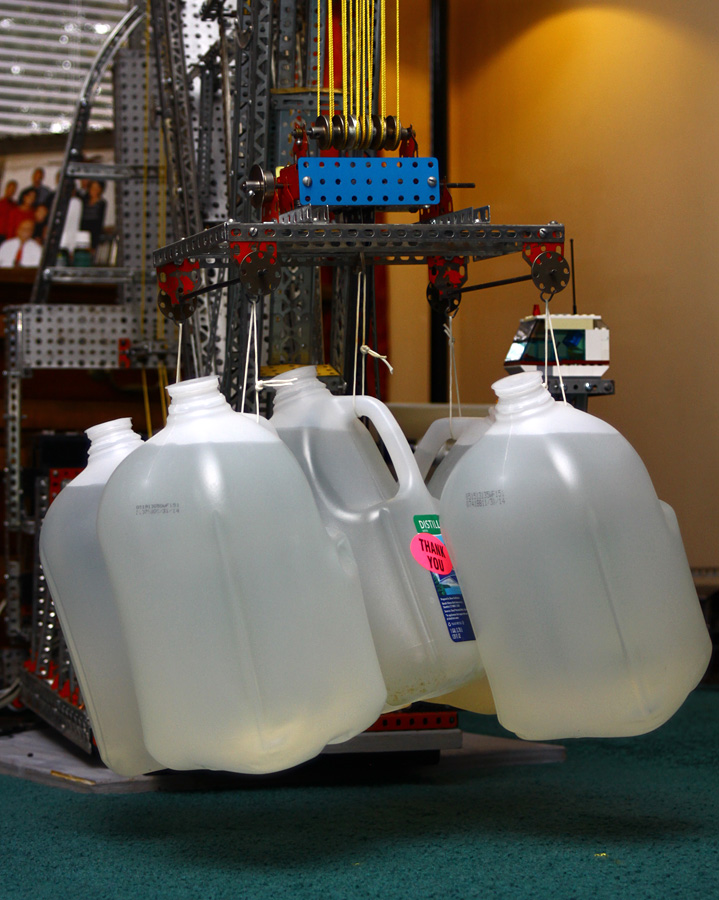

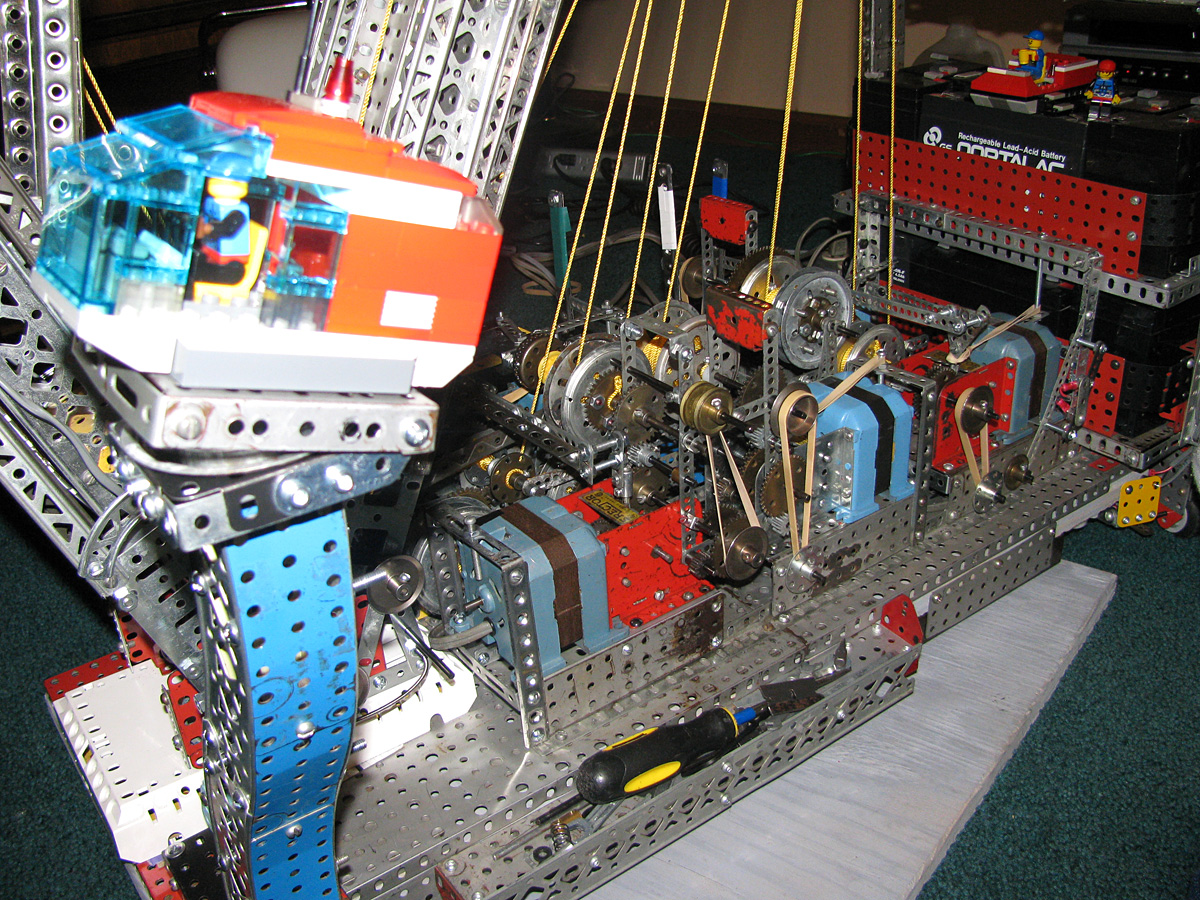

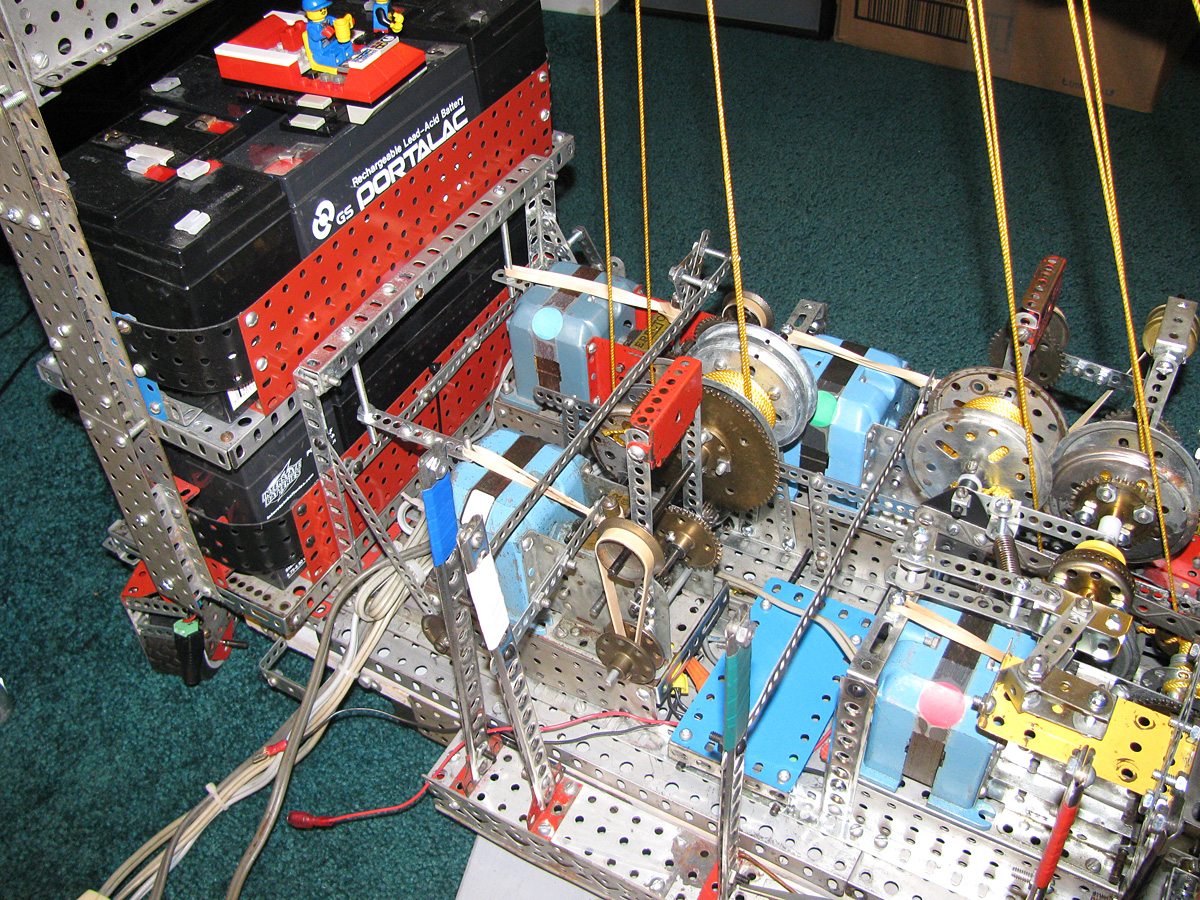

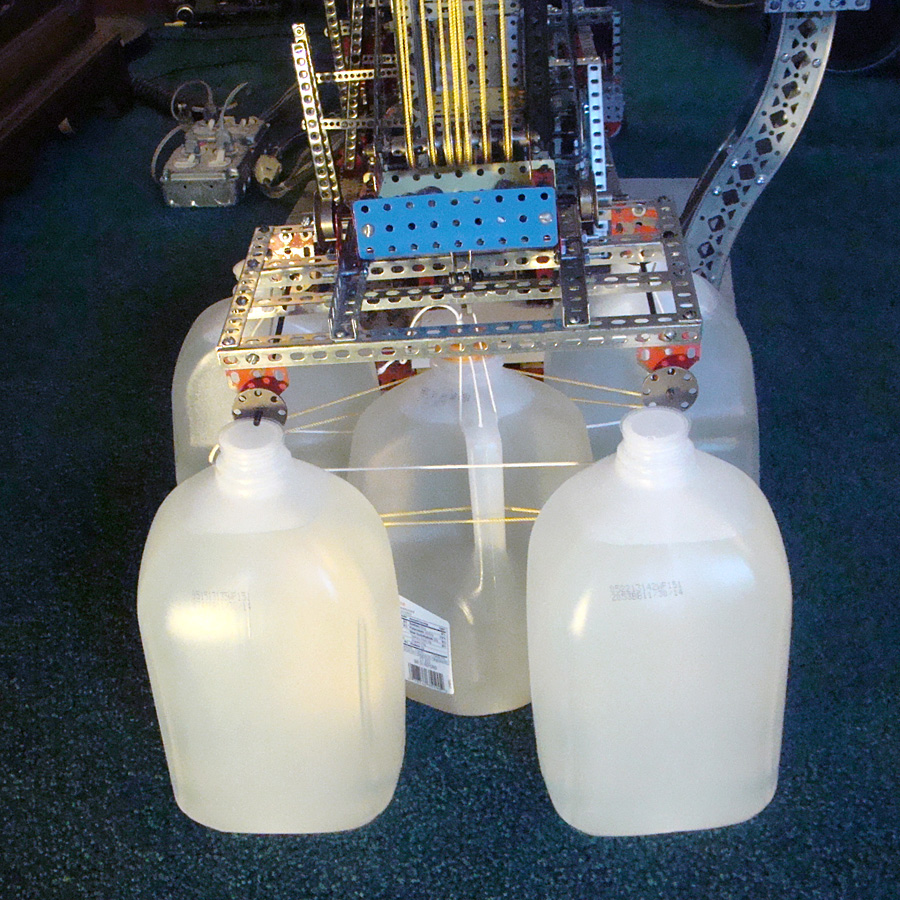

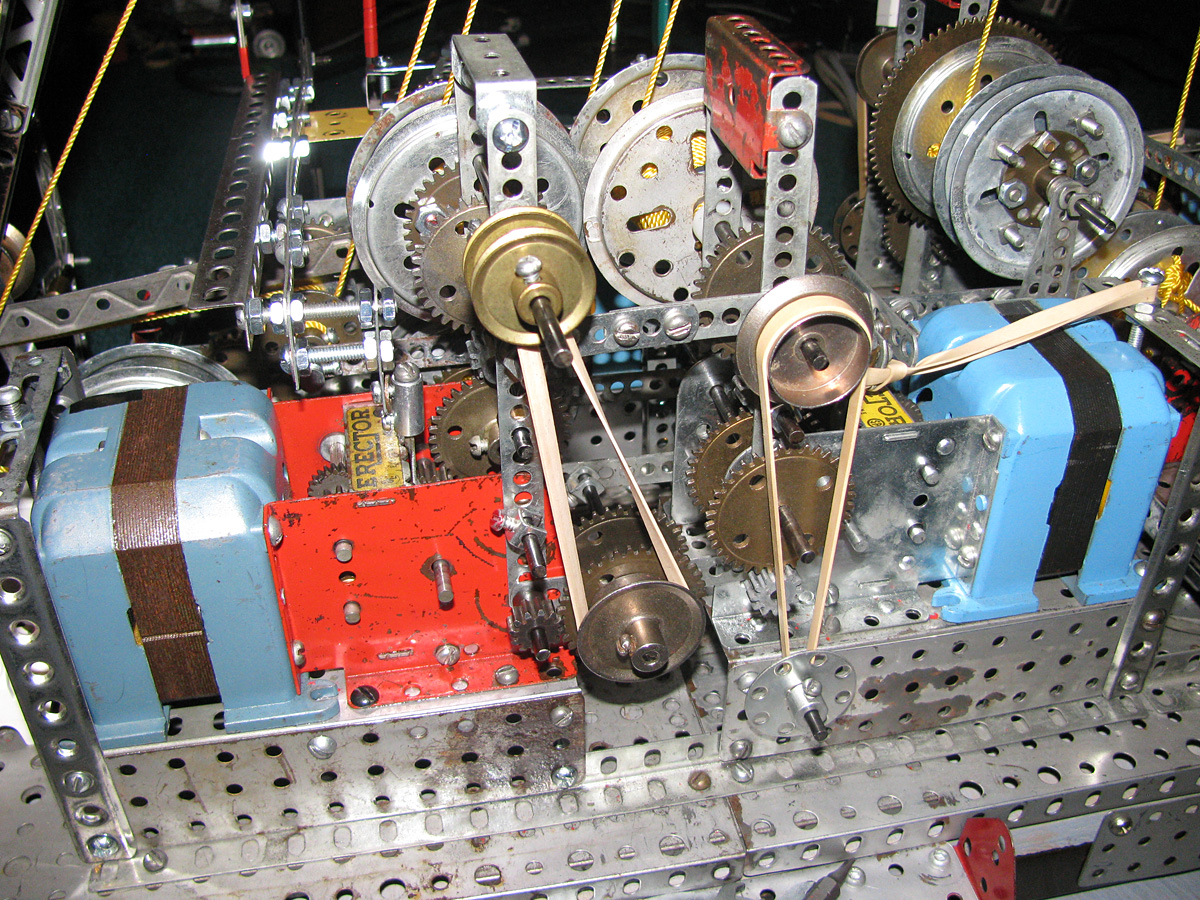

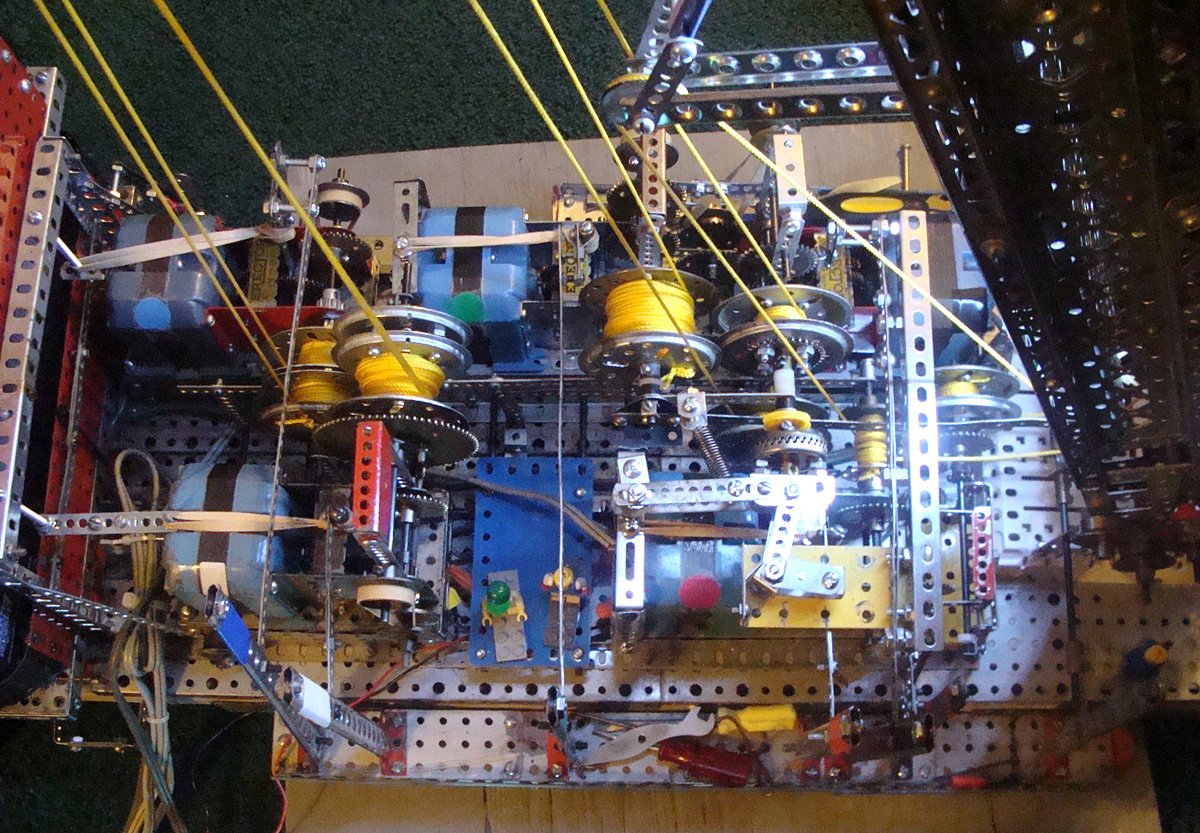

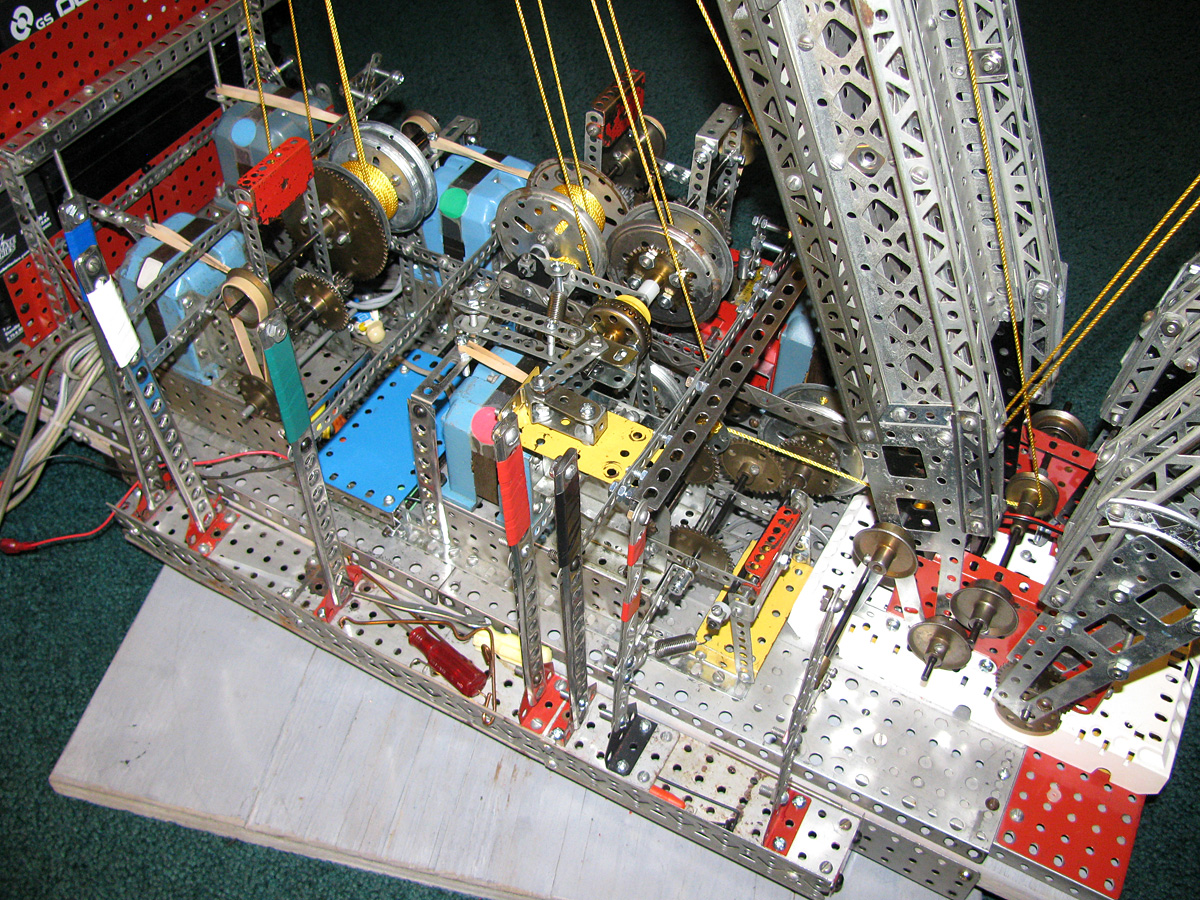

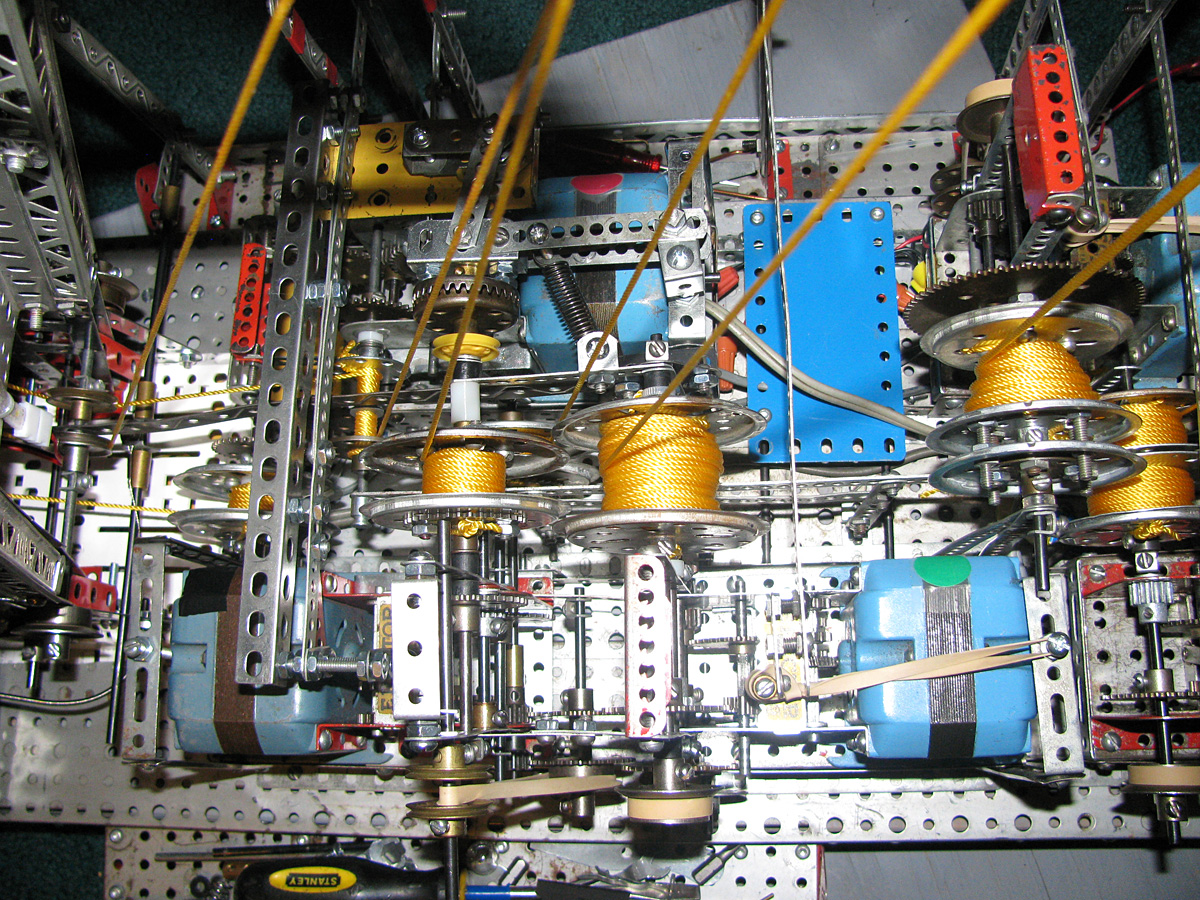

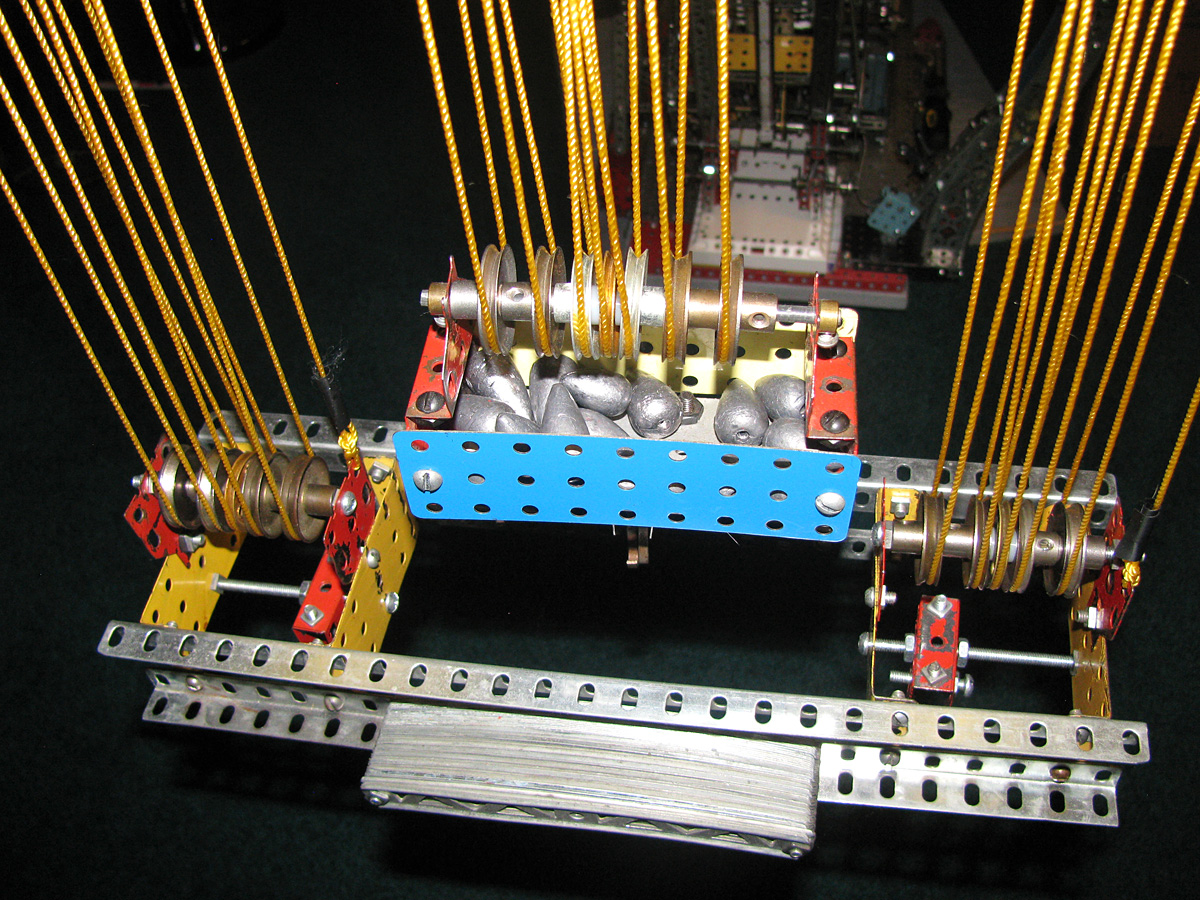

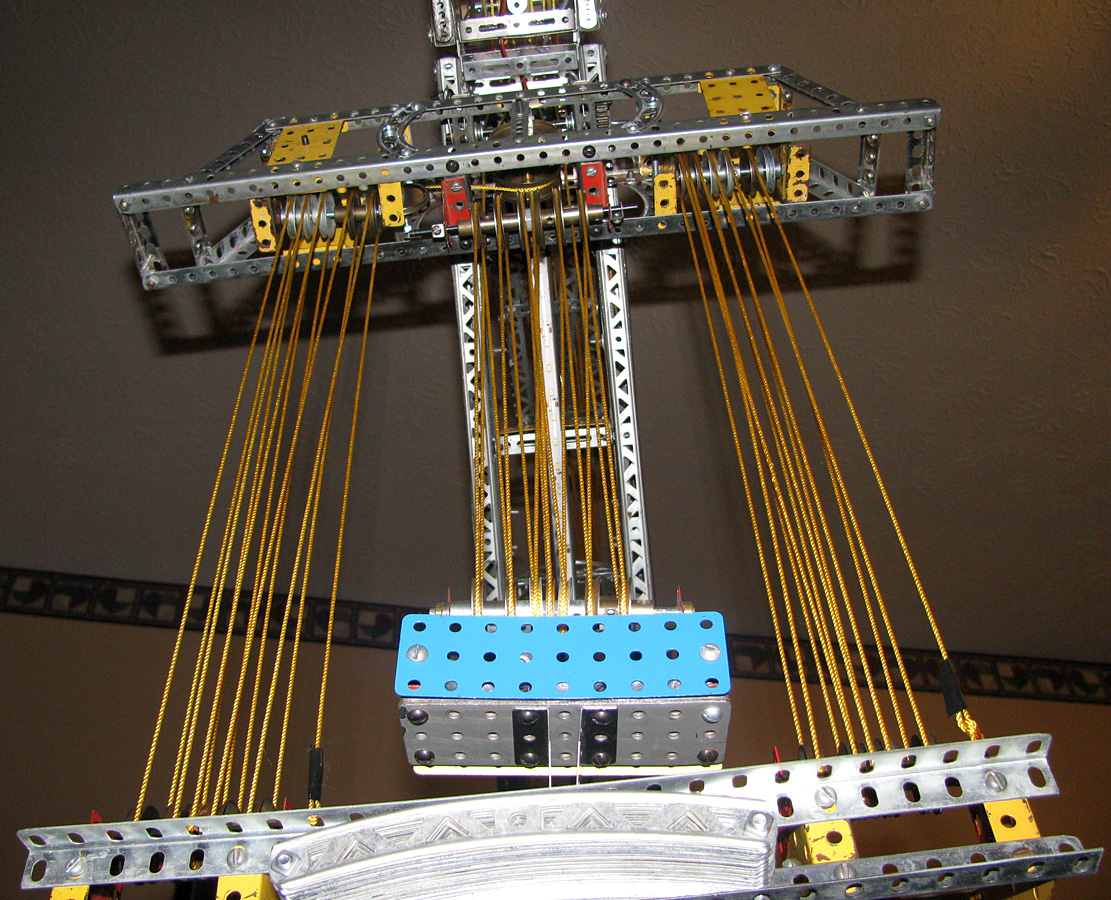

My super heavy lift crane weighs about 125 pounds. Over recent months I have taken it through a number of tests. Upon performing a heavy lift test in August 2014 I successfully lifted 40 pounds. This was done with the use of 5 gallon milk jugs filled with water. The boom height of my crane is 8 feet and it has 4 two-speed hoists and 5 motors.
– Russell Williams, March 8, 2015
